Microcut® COLOR WS

Bring new life to paper cutters

Technology moves quickly. The first thing to become obsolete on a paper cutter is the computer. The Microcut® allows you to completely replace your computer to automate jobs, increase productivity and bring new life to an older paper cutter. Our Microcut COLOR WS is our top of the line unit featuring a 10” wide touch screen.

Microcut COLOR WS moves the backgauge into the correct position faster and more accurately than skilled manual operation. The confidence of computer-controlled precision translates into significant increases in productivity - often 50% and more.

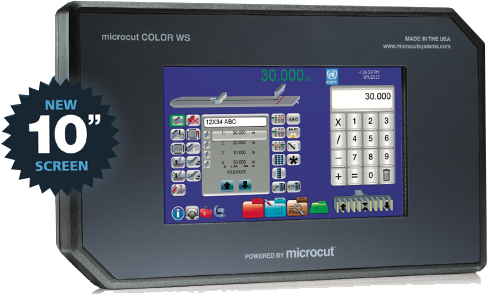

A full-color, 10” wide format touch screen display guides the operator, with all operations presented in an intuitive, easy-to- understand format. Setup is fast and simple, with no complicated codes to memorize or reference.

The system frees the operator from the wasted time and risk of error associated with repetitive data entry. Its ability to automatically program a job while cutting the first lift turns setup time into production time, making automation effective for even two and three lift jobs.

The entry and review of programs is quick and easy. Advanced programming options include label and sheet divide, allowing complicated jobs to be programmed with only a few data entries, with screen graphics further simplifying the process. Fractions, lay changes, additions, or deletions can be easily entered through the keyboard. Non volatile memory ensures data is never lost.

Many paper cutters already have some form of automatic backgauge control, but may have become difficult and expensive, if not impossible, to maintain. These machines are generally sound mechanically and, with the addition of Microcut COLOR WS, can quickly and easily be returned to a high level of productivity and reliability for a fraction of the cost of a new machine.

quotation marks
"We are able to transfer data from the cut files in prepress. This is a really nice added benefit for our more complex jobs, and something we could not do with the other paper cutters we were considering."
Kirk Larsen, Graphic Partners

Why choose the Microcut?

Here are five reasons for you to consider the Microcut COLOR WS for your paper cutter:

  1. Reduces your reliance on parts that are no longer available
  2. Avoids costly replacement parts
  3. Boosts your paper cutter accuracy
  4. More intuitive, more advanced options
  5. Extends the life of your paper cutter

The Compatible Brands

Here are the brands that the Microcut COLOR WS can be installed. Don’t see your paper cutter brand? Contact Us.

  • POLAR
  • PRISM
  • SABER
  • CHALLENGE
  • SCHNEIDER
  • SCHNEIDER ENGINEERING
  • DEXTER LAWSON
  • HARRIS SEYBOLD
  • PERFECTA
  • ITOH
  • PIVANO
  • MAXIMA/ADAST
  • WOHLENBERG
  • BAUM CUT
  • EUROCUTTER
Microcut COLOR WS Features
Microcut COLOR WS Features

Microcut® COLOR WS Features

  • 10” wide format touch screen display
  • Windows® based operating system
  • Graphic interface
  • USB port for data exchange and software updates
  • For all size paper cutters

Microcut® Standard Features

  • Modular, solid-state circuitry
  • Microprocessor-controlled, infinitely variable backgauge drive
  • Repeatability of backgauge position to +/-.002 inches (.05 mm)
  • Measurements in inches, centimeters, millimeters or sun
  • Automatic back-gauge return
  • Operator-defined inch or metric display
  • Program entry or correction through keyboard with the backgauge stationary or when cutting lifts
  • Automatic computation and entry of fractions
  • Insertion or deletion of commands from existing programs
  • Stock eject, turnaround, loading points and job information
  • Infinite lay compensate mode for as many sides as requested
  • Non-volatile memory—no batteries required for memory support
  • Optional auxiliary controls for air table.
  • Speed range is 24 - 960 inches per minute depending the machine size and condition
  • Self-diagnostic electronics
  • Electrical specifications: 85 - 265 VAC, 50/60 Hz @ 1 KVA
  • Parts are warranted for one year from date of shipment against defects and workmanship

Microcut COLOR WS Brochure Download
