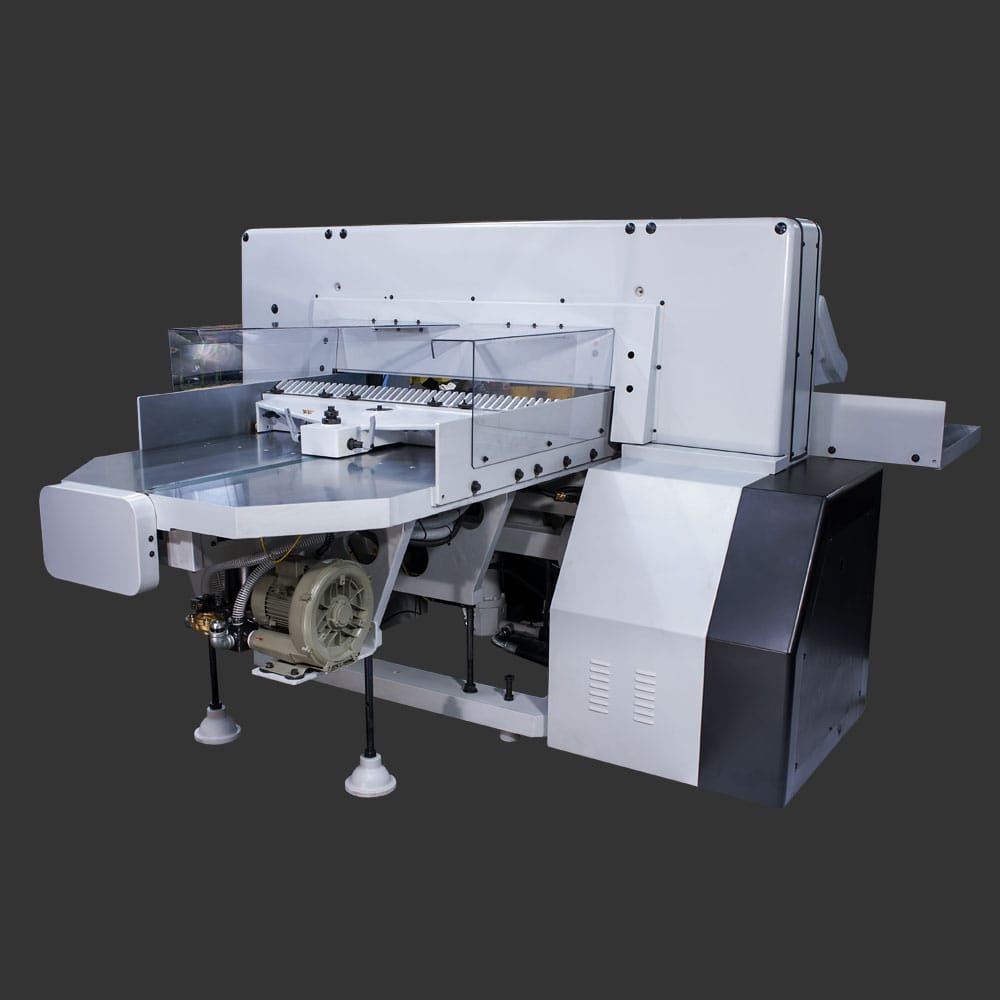

The SABER® X-15 Industrial Paper Cutter
The best machine for demanding jobs
For taking on heavy-duty cutting projects, it doesn’t get better than SABER paper cutters: the best technology, the most power, the greatest endurance. Set up the SABER cutter and you’ll have a workhorse that provides years of satisfying, easy, high-quality operation for all your cutting jobs between 37-62”. The SABER X-15 makes it simple.
“The SABER is our lifeblood and gives us clean cutting by squaring up the back gauge.”
SABER cutters come in four cutting sizes.
37" / 95cm
45" / 116cm
54" / 137cm
62" / 158cm
SABER X-15 FeaturesCut fast, cut well, and cut safely with SABER.
Manufactured to ISO 9001 standards, the SABER X-15 industrial cutter features the strongest and most precise mechanical design on the market. Its massive knife bar cuts through piles with pressure applied equally at both sides, ensuring greater cutting power, less pile disturbance, less mechanical wear, and extended knife life. The centrally located hydraulic clamp cylinder provides steady, uniform clamping pressure. A ball-bearing lead screw, linear guides, and the SABER’s patented DC drive system control the backgauge’s precision, providing smooth and accurate positioning at all speeds.

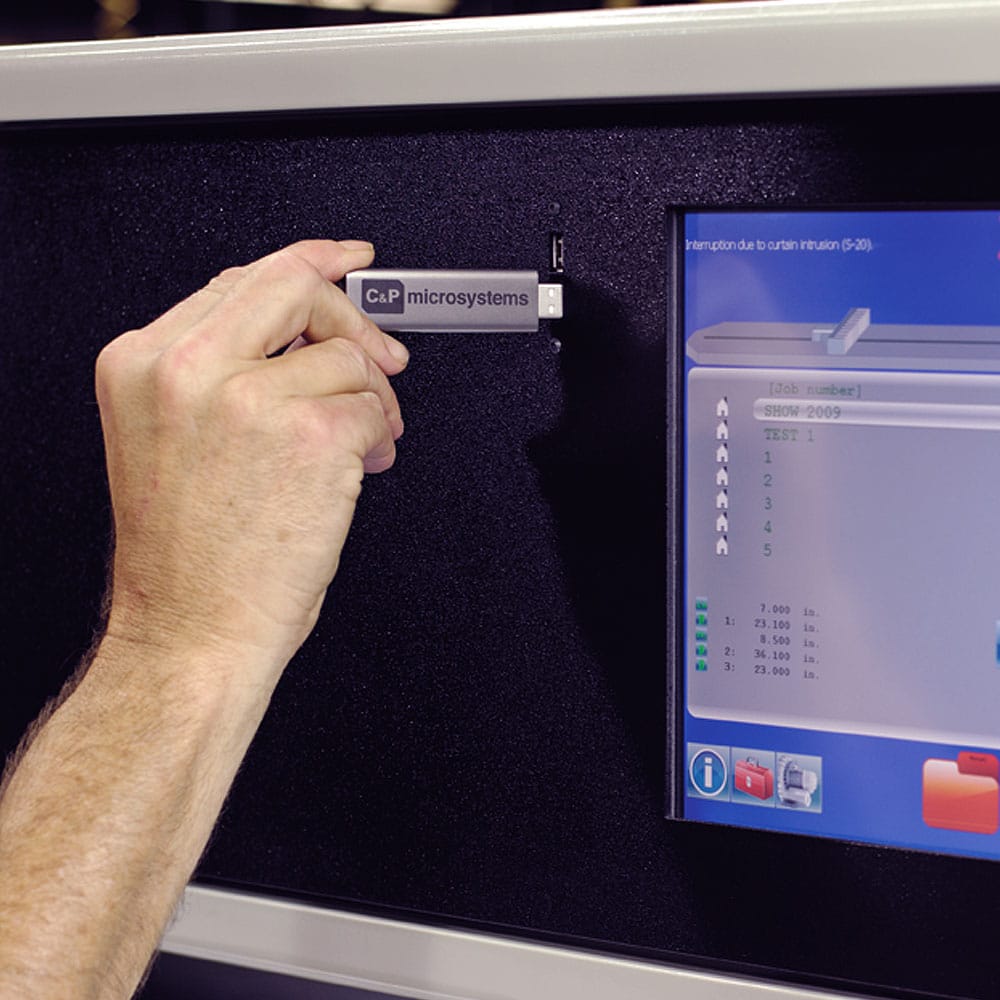

The SABER X-15 cutter features a wide format, color touch screen that details an extensive array of easy-to-use programming and control options. With only a few keystrokes, operators can save and quickly recall both operator preferences and the details of every job. The computer control system designed by C&P Microsystems comes CIP3/4-enabled and network compatible.
No corners have been cut to ensure operator and machine safety on the SABER X-15 cutter, which complies with CE requirements. Two-hand cut release; safety latching of the knife bar; two-stage hydraulics; and a computer controlled IR safety curtain—all standard. Two independent circuits monitor all major functions on the SABER cutter.
Why is a SABER X-15 the best guillotine paper cutter on the market?
1. Heavy Duty Construction
Provides stability and longevity

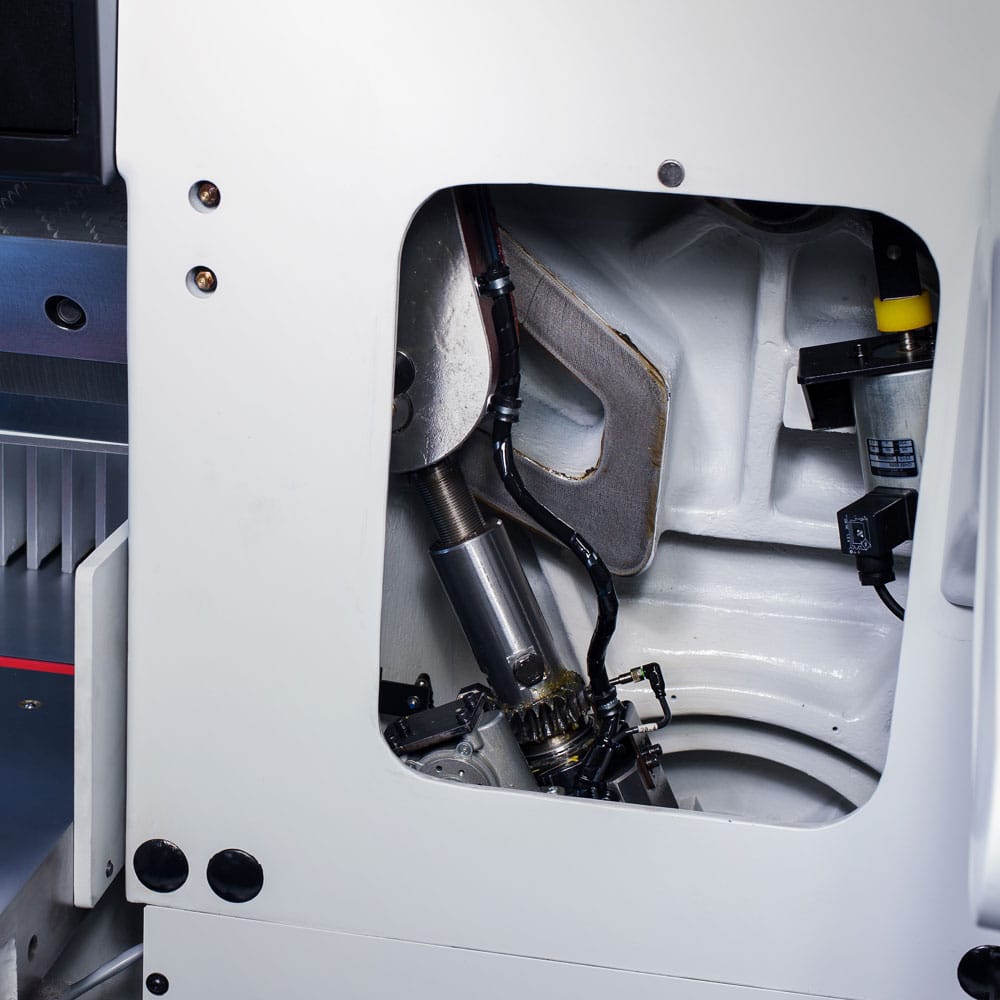

2. Double Arm Pull Knife Drive
More powerful, precise cutting
3. Center Actuated Clamp
Ensures uniform pressure regardless of pile position
4. 15” Color Touch Screen
microcut® computer control system with intuitive graphic interface makes programming fast and easy (12” screen on 37”/95cm model)
5. CIP 3 / 4 Capable with Networking
No extra hardware or software required
6. Automatic Knife Adjustment (Patented)
Knife setting and adjustment can be done automatically without tools (not available on 37”/95cm model)
7. Programmable Clamp Pressure
Automatically adjusts clamp pressure as needed

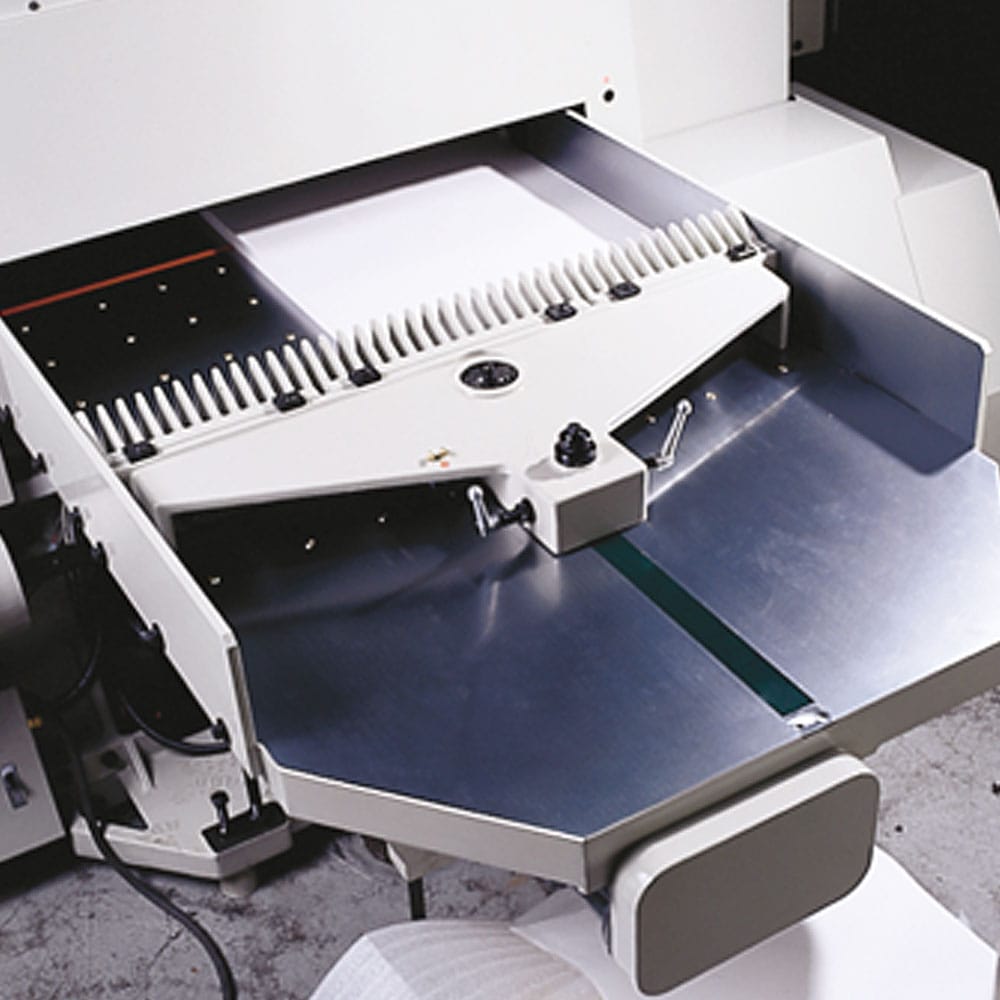

8. Ball Bearing Lead Screw with Linear Guides
Guarantees precise backgauge positioning
9. Cast-Iron Side Tables
Provide strength and durability with no interference from legs
10. Chromed Main and Side Tables
No maintenance required
