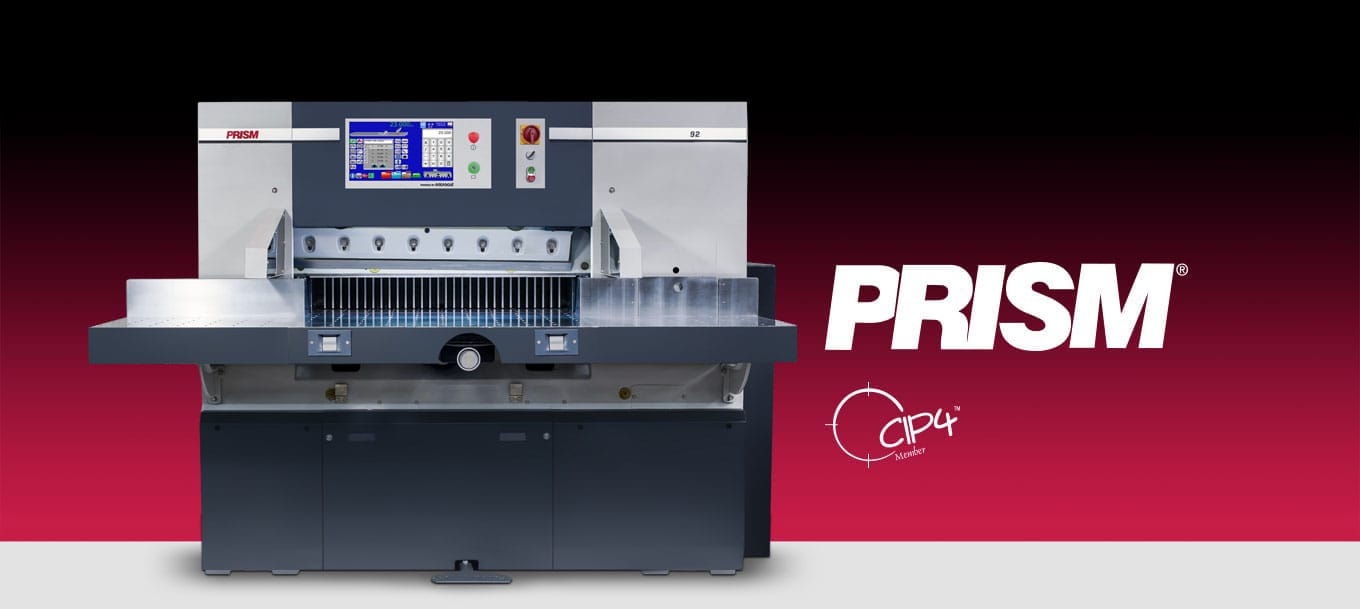

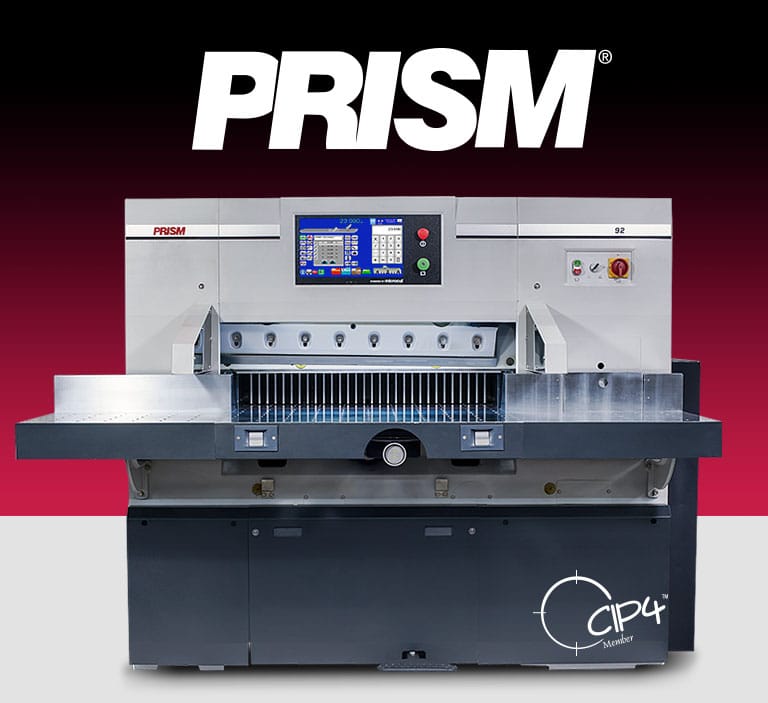

The PRISM® Paper Cutter

Quality, Safety & Ease - No matter how you slice it

PRISM paper cutters bring together the best paper cutting technology the world has to offer in an affordable, high-performance package. Combining a finely honed mechanical design and microcut® computer controls, PRISM cutters will provide years of quality, trouble-free operation and address the full spectrum of your cutting needs. Take a look through the PRISM–you'll like what you see.

Watch the Video

PRISM guillotine cutters come in four cutting sizes.

Sizes Available

PRISM guillotine cutters come in four cutting sizes.

PRISM 31.5 inch
31.5" / 80cm
PRISM 36 inch
36" / 92cm
PRISM 45 inch
45" / 115cm
PRISM 54 inch
54" / 137cm

Features

Looking through the PRISM. Here’s a glance at just some of what PRISM industrial cutters offer:
PRISM cutter Features
PRISM user friendly cutting system
Top-of-the-line Features

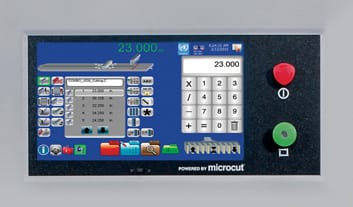

  • Our microcut® computer control unit with 15” color touch screen for automating backgauge movement is the most user-friendly system in the industry
  • Prism industrial paper cutters are all equipped with CIP 3 / 4 JDF capability and are all networkable with no additional hardware or software required
  • Cutting power is provided by a hydraulic clutch and time-tested worm gear design

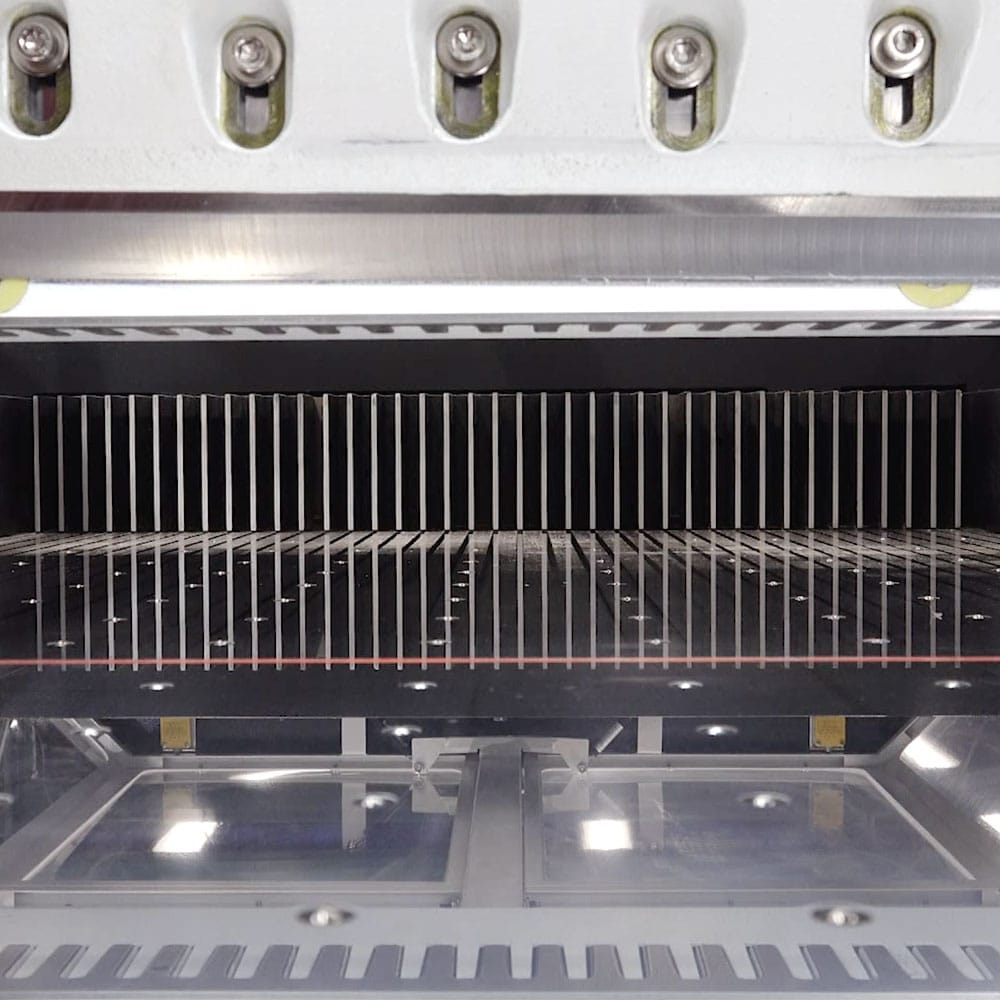

  • Cushion contact clamping eliminates pile disturbance
  • High-speed steel knives (carbide optional) offer extended durability

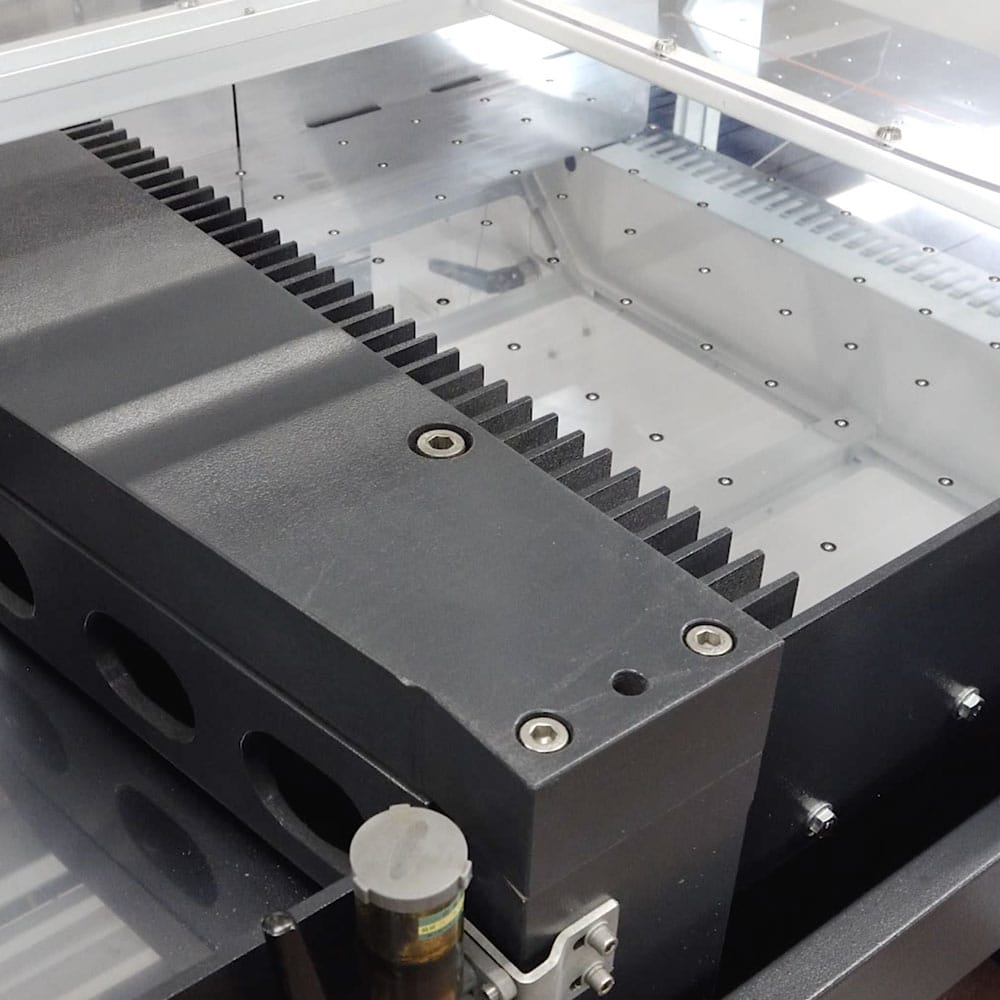

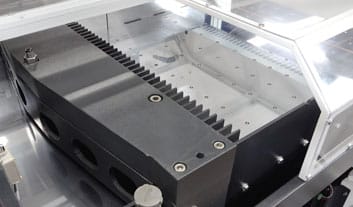

Easily adjustable, programmable
Cutter computer controls
Simplified Usage
  • Set and save job data for future use in the PRISM memory (500,000+ programs)
  • Air table with built-in blower allows for easy material movement
  • One-hand control of the backgauge for fast and precise settings
  • Easily adjustable, electronic, programmable hydraulic clamping system
  • The knife lifting unit allows for fast, simple, safe knife changes

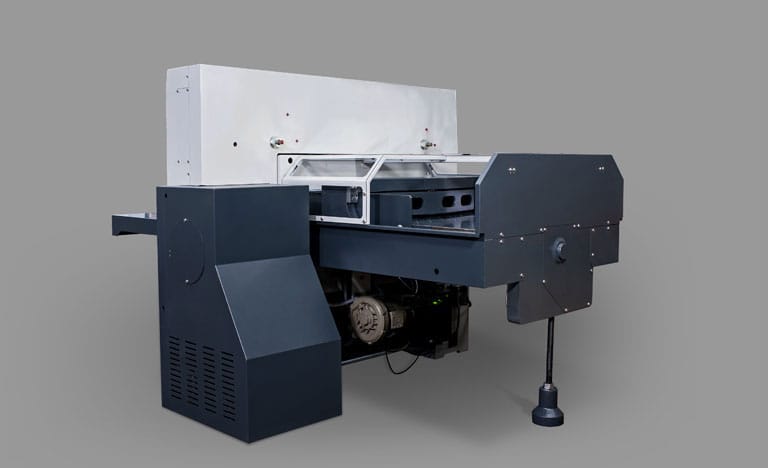

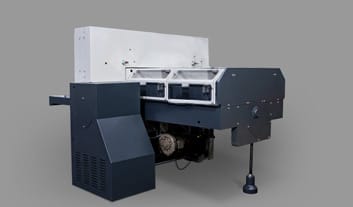

Sturdy, easy to maintain
Sturdy, easy to maintain cutter
Safe, Rugged Design
  • One-piece, chrome-plated, slotless cast iron table is sturdy and easy to maintain
  • Oversize chromed, cast iron side tables with air are standard
  • The knife bar is guided by dual gibs, engineered for rigidity and cutting accuracy
  • Ball screw and dual liner guide guarantee precise backgauge positioning
  • Our soft clamp foot treadle feature assures safe, easy use of the clamp
  • Numerous other features such as knife bar overloads, infrared light barriers

Standard Equipment

Here’s a glance at just some of what the PRISM guillotine cutter offers:

  • Main power switch with lock
  • 15” color LCD touch screen display for size input
  • Overload switch for main and air table motor
  • Overload protection with electronic monitoring
  • Wear-resistant hydraulic clutch
  • Variable hydraulic clamp pressure with electronic control
  • Two-hand cut release, with time delay and non-repeat
  • Safety latch (mechanical lock for knife carrier)
  • Infra-red photo eyes with self check circuit

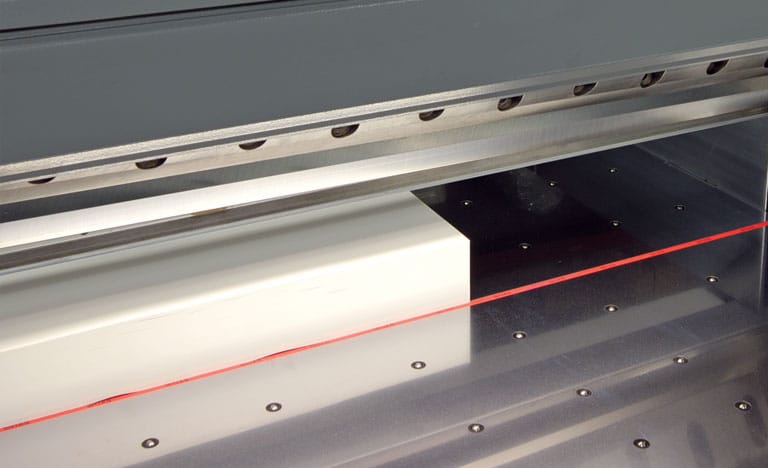

  • Table light/optical cutting line indicator
  • Manual backgauge positioning (one-hand control)
  • Motorized backgauge, microcomputer controlled
  • Digital 15” color touch screen display with rotary measuring system
  • Non-volatile memory storage
  • Measuring systems: inches/metric
  • Automatic individual measurement positioning
  • Cut counter
  • Programming while cutting
  • Low pressure air table with blower
  • Chrome main and side table surface with air
  • Dual linear guides in rear
  • Slot free main table
  • False clamp (removable from the front side)
  • Two knives in storage box
  • Knife lifting device for quick knife change
  • Six plastic cutting sticks
  • Tools, operation manual and spare parts list

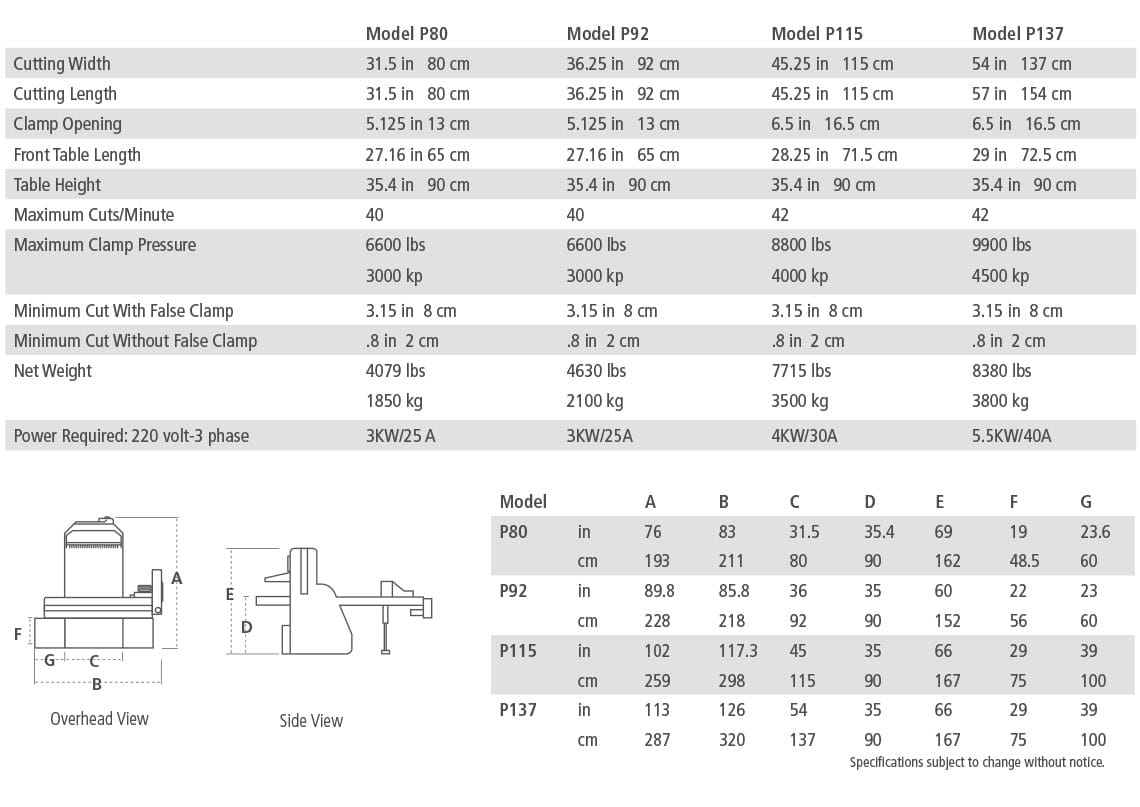

PRISM Specifications

PRISM paper cutter specs
Note: Specifications subject to change without notice
